O2P-2L-MT2

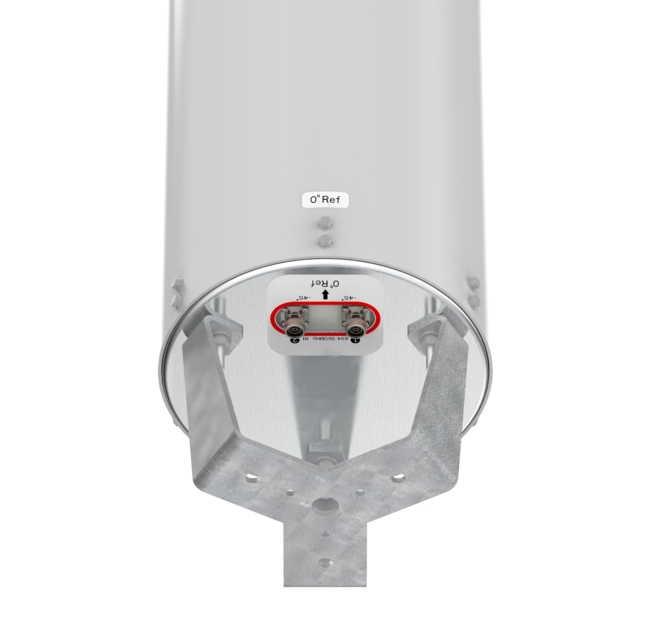

2 Port omni antenna, 2x 694–960 MHz, 360° HPBW, fixed tilt
Features and benefits
- Low profile, low wind load for ease of zoning approval
- Simplifies infrastructure and space requirements compared to traditional V-pol antennas
Specifications
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | ALUMINUM |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Dimensions
| Length | 953 mm | 37.520 in |
| Net Weight, without mounting kit | 11.7 kg | 25.794 lb |
| Outer Diameter | 305 mm | 12.008 in |

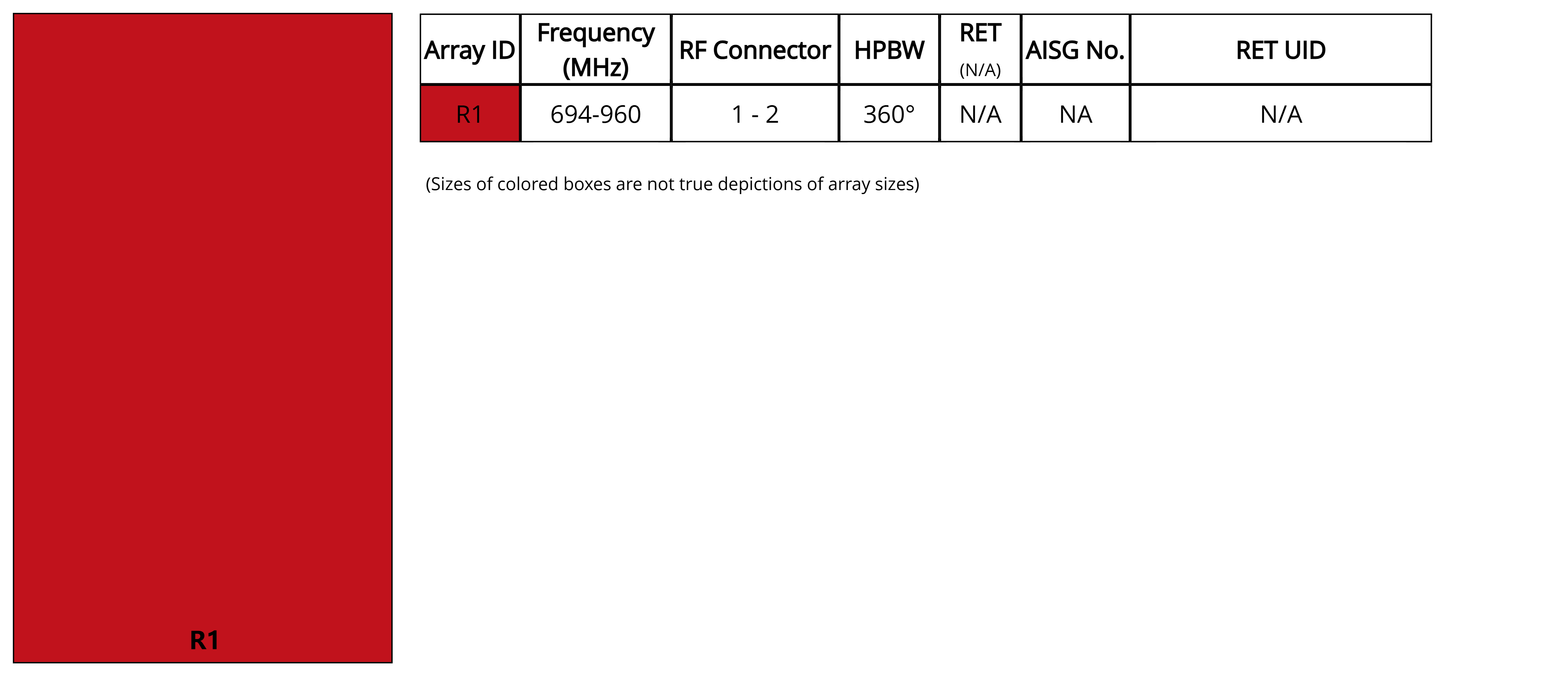

Array layout
| Click on image to enlarge. |

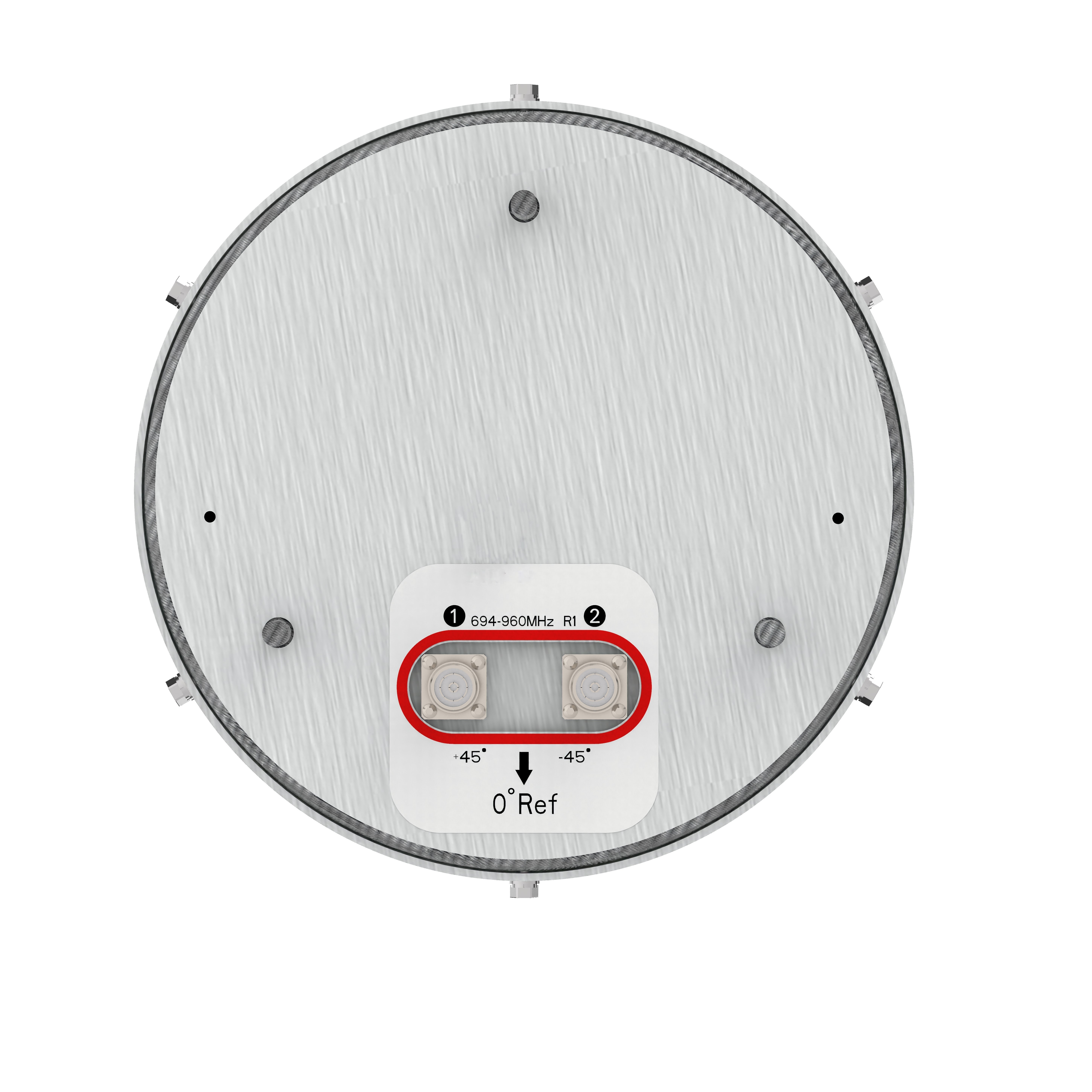

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W |
Electrical specifications
| R1 | R1 | R1 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 7.8 | 8.7 | 9.3 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 26.2 | 22.9 | 20.5 |
| Beam Tilt, degrees | 2 | 2 | 2 |
| USLS (First Lobe), dB | 16 | 16 | 16 |
| CPR at Boresight, dB | 15 | 16 | 17 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 162.0 N @ 150 km/h (36.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 162.0 N @ 150 km/h (36.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 162.0 N @ 150 km/h (36.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 420 mm | 16.535 in |
| Depth, packed | 400 mm | 15.748 in |
| Length, packed | 1220 mm | 48.032 in |
| Weight, gross | 15.8 kg | 34.833 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | ALUMINUM |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Dimensions
| Length | 953 mm | 37.520 in |
| Net Weight, without mounting kit | 11.7 kg | 25.794 lb |
| Outer Diameter | 305 mm | 12.008 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W |
Electrical specifications
| R1 | R1 | R1 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 7.8 | 8.7 | 9.3 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 26.2 | 22.9 | 20.5 |
| Beam Tilt, degrees | 2 | 2 | 2 |
| USLS (First Lobe), dB | 16 | 16 | 16 |
| CPR at Boresight, dB | 15 | 16 | 17 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 162.0 N @ 150 km/h (36.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 162.0 N @ 150 km/h (36.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 162.0 N @ 150 km/h (36.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 420 mm | 16.535 in |
| Depth, packed | 400 mm | 15.748 in |
| Length, packed | 1220 mm | 48.032 in |
| Weight, gross | 15.8 kg | 34.833 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
Installation & videos
Installation instruction
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
