VHLP2-18-DET/D
Base product: VHLP2-18/D
0.6m | 2ft ValuLine High Performance Antenna, single polarized, 17.700 – 19.700 GHz, OEM custom flange, White Antenna, Grey Radome
Specifications
Product classification
| Product Type | Microwave antenna |
| Product Brand | ValuLine® |
General specifications
| Antenna Type | VHLP - ValuLine® High Performance Low Profile Antenna, single-polarized |
| Polarization | Single |
| Antenna Input | Custom |
| Antenna Color | White |
| Reflector Construction | One-piece reflector |
| Radome Color | Gray |
| Radome Material | Composite Broadband |
| Flash Included | No |
| Side Struts, Included | 0 |
| Side Struts, Optional | 0 |
Dimensions
| Diameter, nominal | 0.6 m | 2 ft |
Electrical specifications
| Operating Frequency Band | 17.700 – 19.700 GHz |
| Gain, Low Band | 38.6 dBi |
| Gain, Mid Band | 39 dBi |
| Gain, Top Band | 39.4 dBi |
| Boresite Cross Polarization Discrimination (XPD) | 30 dB |
| Front-to-Back Ratio | 67 dB |
| Beamwidth, Horizontal | 2.1 ° |
| Beamwidth, Vertical | 2.1 ° |
| Return Loss | 17.7 dB |
| VSWR | 1.3 |
| Radiation Pattern Envelope Reference (RPE) | 7204D |
| Electrical Compliance | ACMA FX03_18a | Brazil Anatel Class 3 | Canada SRSP 317.8 Part A | ETSI 302 217 Class 3 | US FCC Part 101A |
Mechanical specifications
| Compatible Mounting Pipe Diameter | 48 mm–120 mm | 1.9 in–4.7 in |
| Fine Azimuth Adjustment Range | ±15° |
| Fine Elevation Adjustment Range | ±15° |
| Wind Speed, operational | 180 km/h | 111.847 mph |
| Wind Speed, survival | 252 km/h | 156.585 mph |

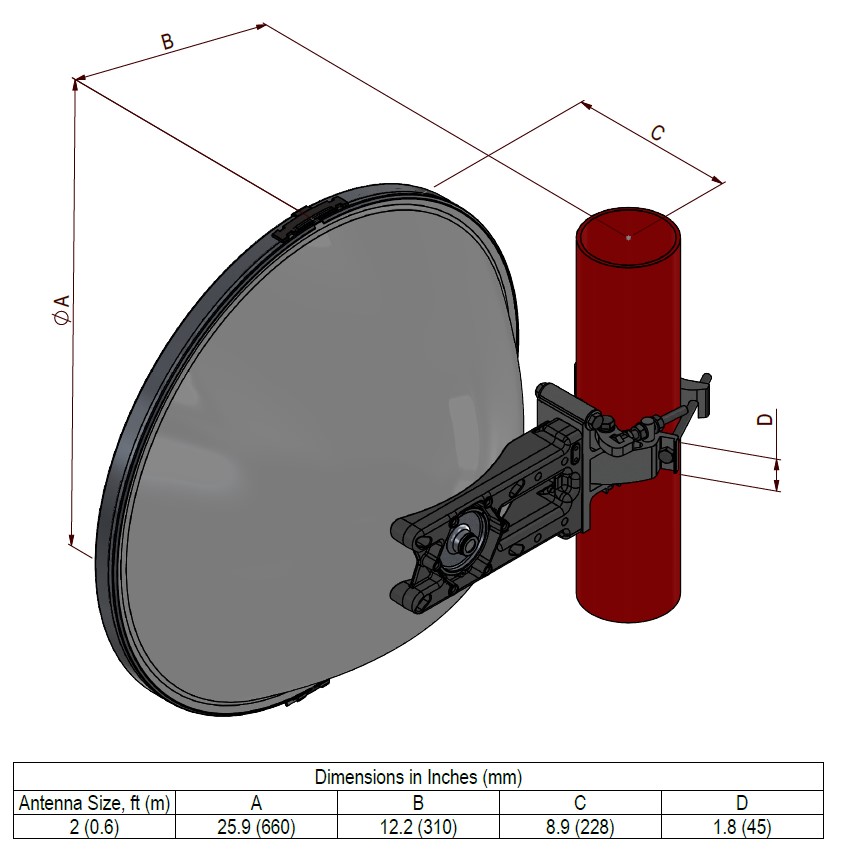

Antenna dimensions and mounting information
| Click on image to enlarge. |

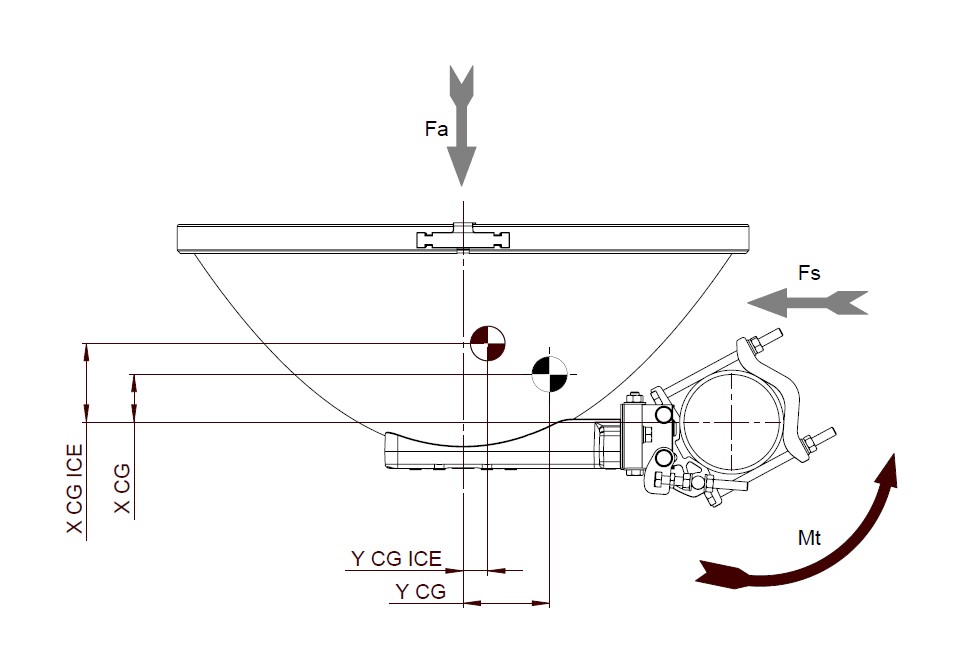

Wind forces at wind velocity survival rating
| Axial Force (FA) | 1400 N | 314.733 lbf |
| Angle α for MT Max | -50 ° |
| Side Force (FS) | -350 N | -78.683 lbf |
| Twisting Moment (MT) | 500 N-m | 4425.373 in lb |
| Zcg without Ice | 55 mm | 2.165 in |
| Zcg with 1 in (25 mm) Radial Ice | 91 mm | 3.583 in |
| Weight with 1 in (25 mm) Radial Ice | 20 kg | 44.092 lb |
Wind forces at wind velocity survival rating image
| Click on image to enlarge. |
Packaging and weights
| Height, packed | 329 mm | 12.953 in |
| Width, packed | 729 mm | 28.701 in |
| Length, packed | 697 mm | 27.441 in |
| Packaging Type | Standard pack |
| Volume | 0.17 m³ | 6.003 ft³ |
| Weight, gross | 8.3 kg | 18.298 lb |
| Weight, net | 5.75 kg | 12.677 lb |
Product classification
| Product Type | Microwave antenna |
| Product Brand | ValuLine® |
General specifications
| Antenna Type | VHLP - ValuLine® High Performance Low Profile Antenna, single-polarized |
| Polarization | Single |
| Antenna Input | Custom |
| Antenna Color | White |
| Reflector Construction | One-piece reflector |
| Radome Color | Gray |
| Radome Material | Composite Broadband |
| Flash Included | No |
| Side Struts, Included | 0 |
| Side Struts, Optional | 0 |
Dimensions
| Diameter, nominal | 0.6 m | 2 ft |
Electrical specifications
| Operating Frequency Band | 17.700 – 19.700 GHz |
| Gain, Low Band | 38.6 dBi |
| Gain, Mid Band | 39 dBi |
| Gain, Top Band | 39.4 dBi |
| Boresite Cross Polarization Discrimination (XPD) | 30 dB |
| Front-to-Back Ratio | 67 dB |
| Beamwidth, Horizontal | 2.1 ° |
| Beamwidth, Vertical | 2.1 ° |
| Return Loss | 17.7 dB |
| VSWR | 1.3 |
| Radiation Pattern Envelope Reference (RPE) | 7204D |
| Electrical Compliance | ACMA FX03_18a | Brazil Anatel Class 3 | Canada SRSP 317.8 Part A | ETSI 302 217 Class 3 | US FCC Part 101A |
Mechanical specifications
| Compatible Mounting Pipe Diameter | 48 mm–120 mm | 1.9 in–4.7 in |
| Fine Azimuth Adjustment Range | ±15° |
| Fine Elevation Adjustment Range | ±15° |
| Wind Speed, operational | 180 km/h | 111.847 mph |
| Wind Speed, survival | 252 km/h | 156.585 mph |
Wind forces at wind velocity survival rating
| Axial Force (FA) | 1400 N | 314.733 lbf |
| Angle α for MT Max | -50 ° |
| Side Force (FS) | -350 N | -78.683 lbf |
| Twisting Moment (MT) | 500 N-m | 4425.373 in lb |
| Zcg without Ice | 55 mm | 2.165 in |
| Zcg with 1 in (25 mm) Radial Ice | 91 mm | 3.583 in |
| Weight with 1 in (25 mm) Radial Ice | 20 kg | 44.092 lb |
Packaging and weights
| Height, packed | 329 mm | 12.953 in |
| Width, packed | 729 mm | 28.701 in |
| Length, packed | 697 mm | 27.441 in |
| Packaging Type | Standard pack |
| Volume | 0.17 m³ | 6.003 ft³ |
| Weight, gross | 8.3 kg | 18.298 lb |
| Weight, net | 5.75 kg | 12.677 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
