E14F06P99

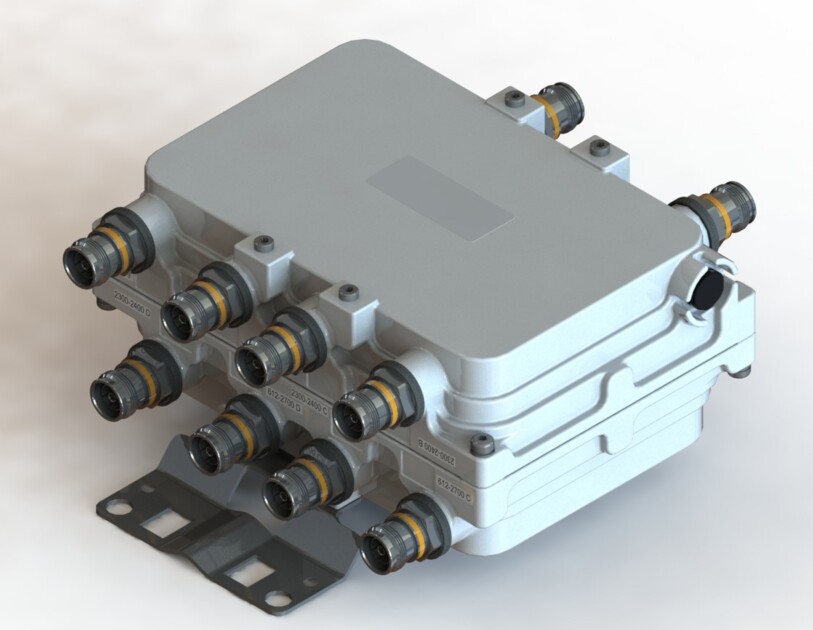

Quad Diplxer 612-2700/2300 DC/AISG bypass on all ports

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Features and benefits

Industry leading PIM performance
New 4.3-10 connectors for improved PIM performance and size reduction
Designed for network modernization application, introduction of LTE 4x4 MIMO
Designed for network Modernization, introduction of LTE2300 on existing site

Specifications

Product classification

Product Type

Diplexer

General specifications

Color	Gray
Modularity	4-Quad
Mounting Pipe Hardware	Band clamps
RF Connector Interface	4.3-10 Female
RF Connector Interface Body Style	Long neck

Dimensions

Height	154 mm \| 6.063 in
Width	219 mm \| 8.622 in
Depth	95 mm \| 3.740 in

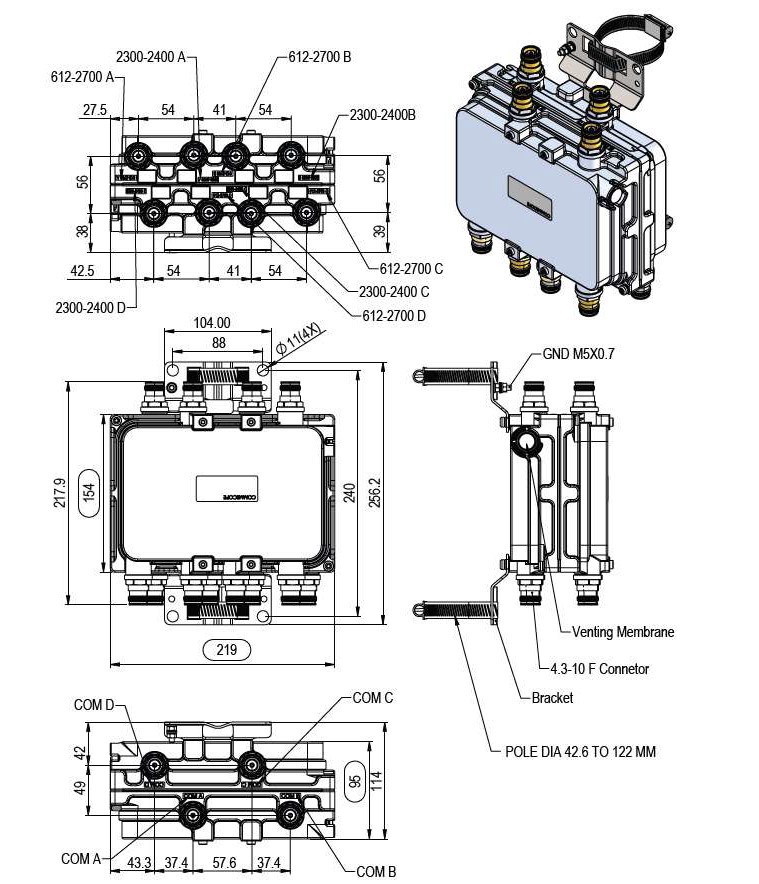

Outline drawing

Click on image to enlarge.

Electrical specifications

Impedance	50 ohm
License Band, Band Pass	APT 700 \| CEL 850 \| CEL 900 \| DCS 1800 \| IMT 2100 \| IMT 2600 \| WCS 2300

Electrical specifications, dc power/alarm

dc/AISG Pass-through, combiner	Branch 1 \| Branch 2
dc/AISG Pass-through, demultiplexer	Branch 1 \| Branch 2
Lightning Surge Current	5 kA
Lightning Surge Current Waveform	8/20 waveform

Electrical specifications

Sub-module	1 \| 2	1 \| 2
Branch	1	2
Port Designation	Port 612-2200 2496 to 2700 MHz	Port 2300 to 2400 MHz
License Band	APT 700, Band Pass CEL 850, Band Pass CEL 900, Band Pass DCS 1800, Band Pass IMT 2100, Band Pass IMT 2600, Band Pass USA 600, Band Pass	TDD 2300, Band Pass WCS 2300, Band Pass

Electrical specifications, band pass

Frequency Range, MHz	2300–2400	612–2200 2496–2690
Insertion Loss, typical, dB	0.20	0.20
Return Loss, typical, dB	20	20
Isolation, typical, dB	48	44
Input Power, RMS, maximum, W	200	200
Input Power, PEP, maximum, W	1,500	1,500
3rd Order PIM, typical, dBc		-155
3rd Order PIM Test Method		2 x 20 W CW tones

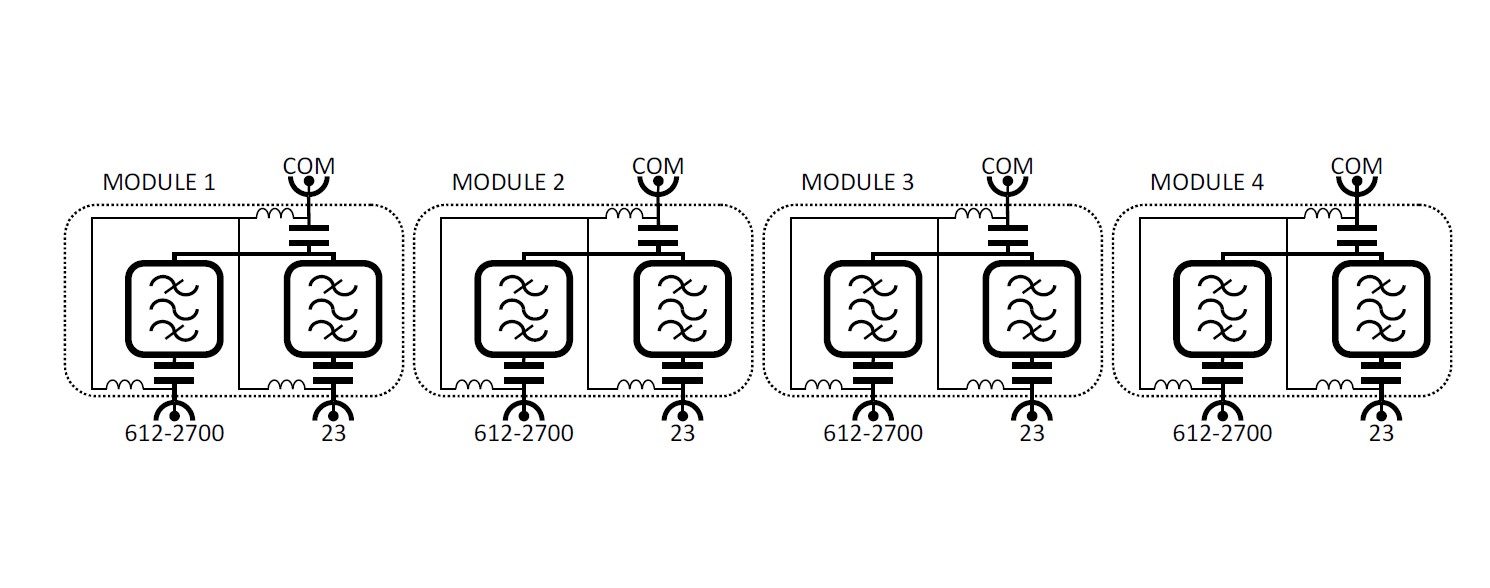

Block diagram

Click on image to enlarge.

Environmental specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Corrosion Test Method	IEC 60068-2-11, 30 days
Environmental Test Method	ETSI EN 300 019-1-4
Ingress Protection Test Method	IEC 60529:2001, IP67

Packaging and weights

Volume	3.3 L
Weight, net	4.9 kg \| 10.803 lb
Weight, without mounting hardware	4.7 kg \| 10.362 lb

Product classification

Product Type

Diplexer

General specifications

Color	Gray
Modularity	4-Quad
Mounting Pipe Hardware	Band clamps
RF Connector Interface	4.3-10 Female
RF Connector Interface Body Style	Long neck

Dimensions

Height	154 mm \| 6.063 in
Width	219 mm \| 8.622 in
Depth	95 mm \| 3.740 in

Electrical specifications

Impedance	50 ohm
License Band, Band Pass	APT 700 \| CEL 850 \| CEL 900 \| DCS 1800 \| IMT 2100 \| IMT 2600 \| WCS 2300

Electrical specifications, dc power/alarm

dc/AISG Pass-through, combiner	Branch 1 \| Branch 2
dc/AISG Pass-through, demultiplexer	Branch 1 \| Branch 2
Lightning Surge Current	5 kA
Lightning Surge Current Waveform	8/20 waveform

Electrical specifications

Sub-module	1 \| 2	1 \| 2
Branch	1	2
Port Designation	Port 612-2200;2496 to 2700 MHz	Port 2300 to 2400 MHz
License Band	APT 700, Band Pass; CEL 850, Band Pass; CEL 900, Band Pass; DCS 1800, Band Pass; IMT 2100, Band Pass; IMT 2600, Band Pass; USA 600, Band Pass	TDD 2300, Band Pass; WCS 2300, Band Pass

Electrical specifications, band pass

Frequency Range, MHz	2300–2400	612–2200;2496–2690
Insertion Loss, typical, dB	0.20	0.20
Return Loss, typical, dB	20	20
Isolation, typical, dB	48	44
Input Power, RMS, maximum, W	200	200
Input Power, PEP, maximum, W	1,500	1,500
3rd Order PIM, typical, dBc		-155
3rd Order PIM Test Method		2 x 20 W CW tones

Environmental specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Corrosion Test Method	IEC 60068-2-11, 30 days
Environmental Test Method	ETSI EN 300 019-1-4
Ingress Protection Test Method	IEC 60529:2001, IP67
